GX200 QX2 Honda Horizontal OHV Engine – FREE SHIPPING CONTINENTAL U.S. ONLY

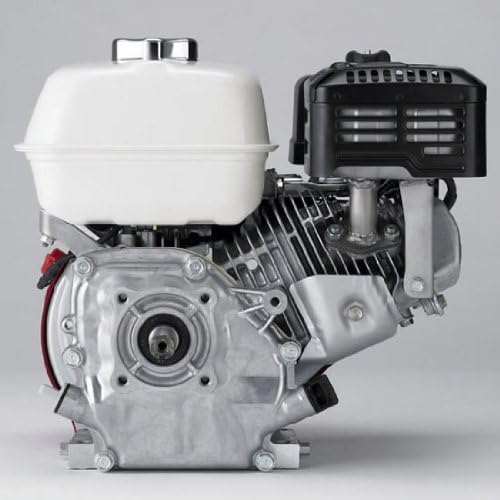

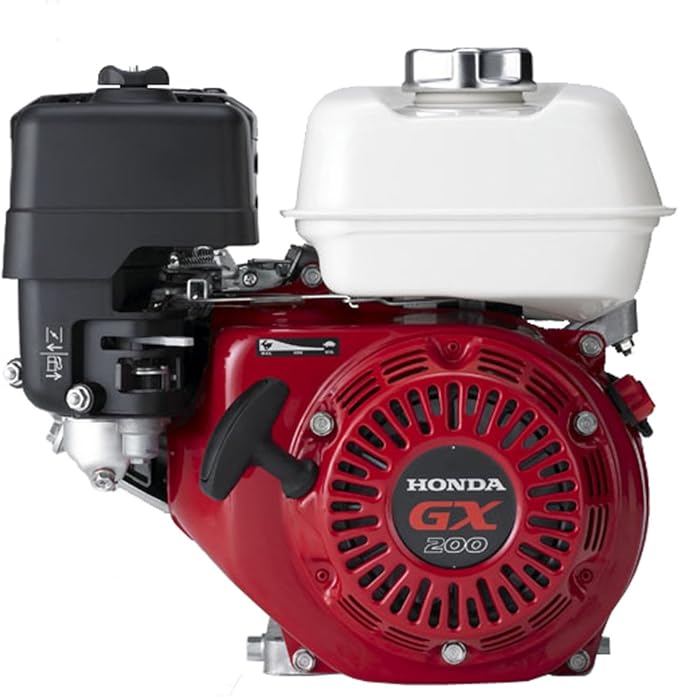

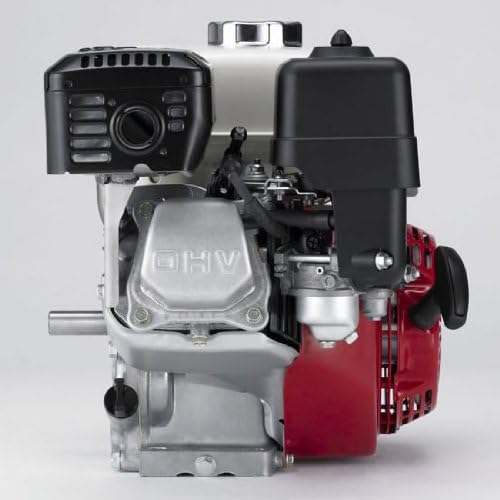

Honda GX200 QX2 (GX200UT2QX2) horizontal OHV engine is 200cc and puts out 5.5 net HP. This Honda GX has a 3/4″ x 2-7/16″ crankshaft. The engine has a recoil starter and includes a standard muffler and oil alert system. Honda GX200 commercial engines deliver economical and quiet operation without sacrificing superior performance and reliable power. Common applications for this engine include water pumps, small vehicles, commercial lawn and garden equipment, generators and more.
Features Include:
- 200cc, net 5.5HP
- 3/4″ x 2-7/16″ crank
- Recoil Start
- Standard muffler
- Oil alert
- 49-State CARB compliant
| Warranty | 36 Months Private Residential; 36 Months Commercial,Rental,Institutional |
| Displacement Range | 121cc – 240cc |
| Engine Brand | Honda |
| Crankshaft Diameter | 3/4″ |
| Crankshaft Length | 2-27/64″ |
| Crankshaft End Tapped Size | 5/16-24 |
| Crankshaft Keyway Width | 3/16″ |
| Air Cleaner Type | Dual Element Silent |
| Throttle Control | Manual, Remote (Rod) |
| Starter Type | Recoil |
| PTO Height | 4-11/64 |
| Max RPM | 3600 |
| Oil Cooler | No |
| Carburetor Type | Float |
| Valve Style | OHV |
| Recoil Starter Position | 9:00 O’Clock |
| Displacement | 196cc |
| Ignition System | Transistorized Magneto |
| Lubrication System | Splash |
| Oil Capacity | 20 |
| Muffler | Yes |
| Fuel System | Gasoline |
| Governor System | Mechanical |
| Gear Reduction | No |
| Charging System | None |
| Choke Control | Manual |
| Cooling System | Air |
| Type | Small Engines |
| Fuel Pump | No |
| Auxiliary PTO | No |
| Compression Release | Yes |
| MFG Rated Output | 5.5 Net HP |
| CPSC Compliant | No |
| Low Oil Shutdown | Yes |
| Low Oil Alert/Shutdown | No |
| Compression Ratio | 8.5:1 |
| Extended Recoil Rope | No |
| Oil Filter | No |
| Bolt Circle (in.) | 3-5/8 |
| Crankshaft Type | Straight |
| Oil Pump | No |
| Fuel Filter | Yes |
| Control Box | No |
| Cylinders (quantity) | 1 |
| Cylinder Bore Type | Cast Iron |
| Bore x Stroke | 68 x 54 mm |
| Crankshaft Style | Horizontal |
| For Use in California | No |
| Crankshaft Rotation Direction (from PTO Shaft Side) | Counterclockwise |
| Color | Red |
